Point of care ultrasound scanning. So small & light, you can carry it in your pocket.
Get Started
Affordable, point of care scanning in the palm of your hand

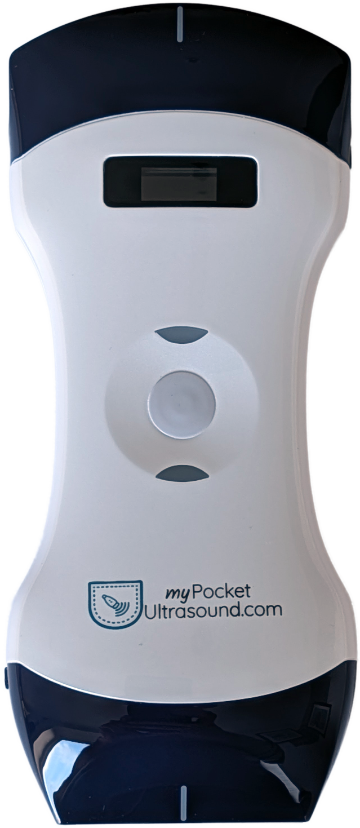

MyPocketUltrasound is a 3 in 1 ultrasound probe, providing linear, curvilinear and phased array ultrasound in one small portable device.
MyPocketUltrasound connects to your phone, tablet or laptop, giving exceptional imaging where ever you need it.
MyPocketUltrasound is a one time purchase and needs no ongoing subscription for use.
Specification
| 192 Array element transducer | |
| Frequency | R60 Convex / Phased array probe 3.2MHz / 5MHz |
| L40 Linear probe 7.5MHz/10.0MHz | |
| Display Depth | Convex 90/160/220/305mm Linear 20/40/60/80mm |
| Scan angle and width | Convex 60° Phased array 60° Linear 40mm |
| Image Adjustments | Gain, Dynamic Range, Time based Gain, Focus, Depth, Harmonic, Denoise |
| Puncture assist function | The function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement, and the enhancement function of needle point development. |
| Noise reduction | Five levels - None and 1-2-3-4 |
| Gain | 30db-105db |
| Dynamic Range | 40/50/60/70/80/90/100/110 |
| Cineplay | Auto and manual, frames can set as 100/200/500/1000 |
| Measurements | Length, Area, Angle, Obstetrics |
| Battery working time | 3 hours |
| Charging | Wireless charger. 2 hours to full |
| Dimension | 156 x 60 x 20mm |
| Weight | ~ 260g |
| Wifi | 802.11g/ 20MHz / 5G / 450Mbps |
| Operating systems | Apple OSX Desktop / iOS App / Android App and Windows desktop |
Approvals and Certifications
Contact Us
Get in touch to arrange a demo or find out more
